Line blind valves:
• made of forged steel
• ASME class 1500 – 4500 / PN160 – 630
• NPS 2″ – 36″ / DN50 – 900
• as per ASME or DIN standards
• with weld ends
• for temperatures of up to 650 °C
Cast gates, valves and check valves
• ASME class 150 – 2500 / PN10 – PN160
• NPS 2″ – 48″ / DN50 – 800
• as per ASME 16.34 or API600, or DIN standard
• with flange or weld end
• for temperatures of -196 °C to 600 °C
Forged gates, valves and non-return valves
• ASME class 150 – 2500 / PN16 – PN400
• NPS ¼” – 2″ / DN15 – 50
• API602 and API600, and DIN/EN standards
• with flange, weld end, NPT and welded sleeve
• for temperatures of -196 °C to 600 °C
Actuation:
• Hand wheel or gear unit
• Electric drive
• Hydraulic drive
• Pneumatic drive
High Pressure Applications:

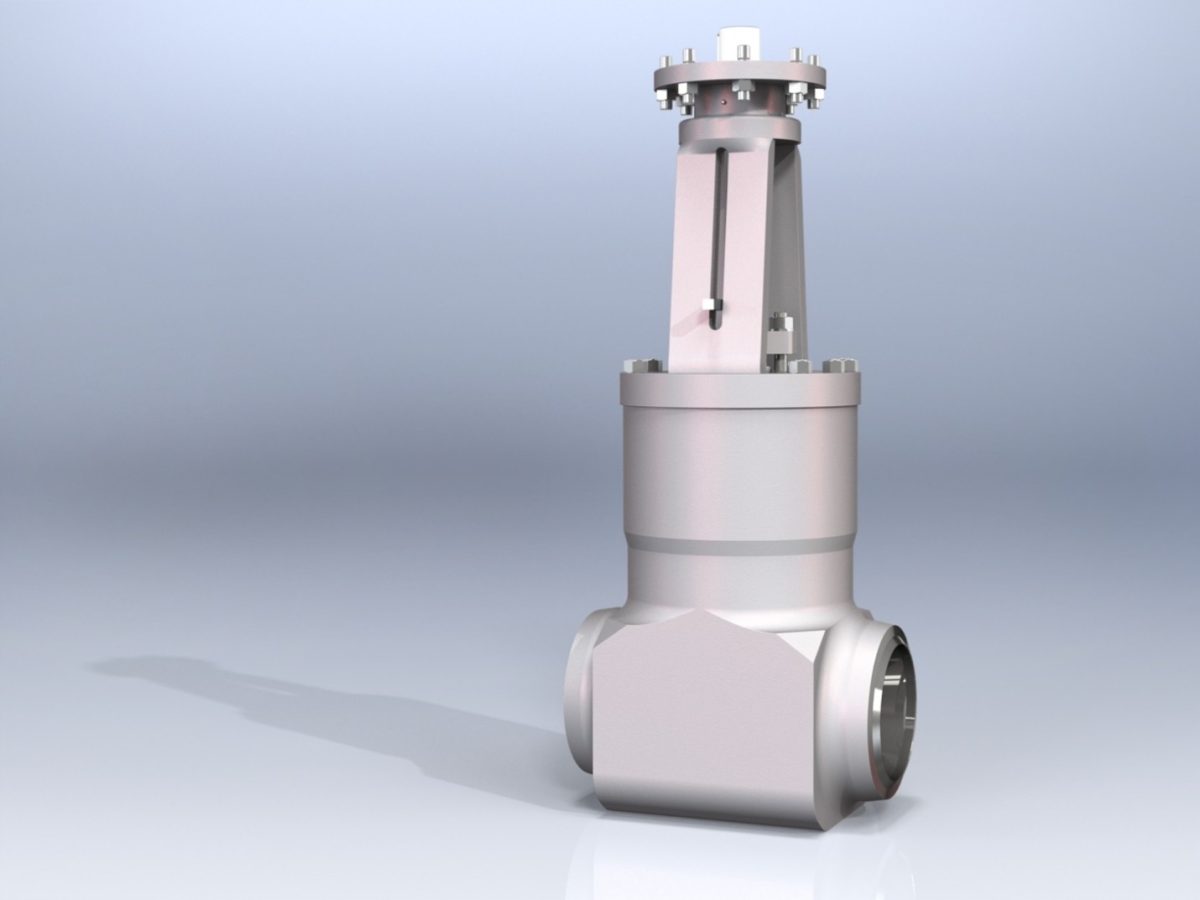

Gate valves with self-sealing cover closures or with bolted covers
• made of forged steel
• with wedge plates
• ASME class 900 – 4500 / PN160 – 630
• NPS 2″ – 36″ / DN50 – 900
• as per ASME or DIN/EN standards
• with weld ends and flange
• for temperatures of -196 °C to 650 °C
Variants:
• Cast version
• Parallel plates
Actuation:
• Hand wheel or gear unit
• Electric drive
• Hydraulic drive
• Pneumatic drive
Ball Valve
• ASME class 150 – 2500 / PN10 – PN100
• NPS ½” – 48″ / DN15 – 600
• as per ASME or DIN standards
• with flange or weld end
• for temperatures of -196 °C to 400 °C
Actuation:
• Hand wheel or gear unit
• Electric drive
Pneumatic or hydraulic drive

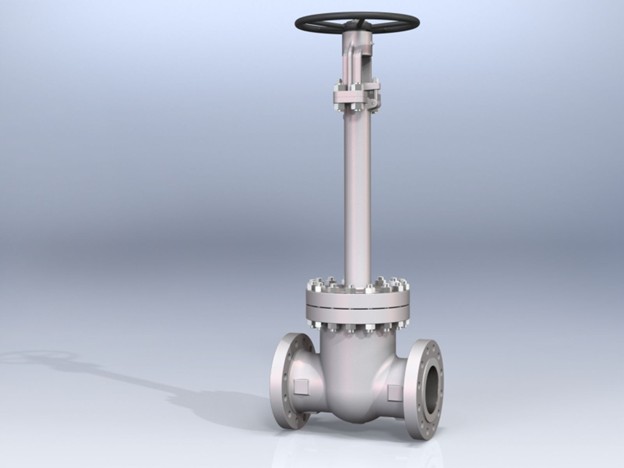

Gates, valves & ball valves for low-temperature applications
• ASME class 150 – 600 / PN10 – PN100
• NPS ½” – 36″ / DN15 – 600
• as per ASME 16.34 or API600, or DIN standard
• with flange or weld end
• for temperatures of -196 °C to 350 °C
Actuation:
• Hand wheel or gear unit
• Electric drive
Preheater Bypass Valve
• made of forged steel, cast version on request
• Medium-controlled or with electric drive
• ASME class 900 – 4500 / PN160 – 630
• NPS 2″ – 24″ / DN50 – 600
• as per ASME or DIN standards
• with weld ends
• for temperatures of up to 400 °C
Fertilizer valves PN325
|
Angle & Straight design |
DN6 – 30 / 1/4” -1 ½” |
|

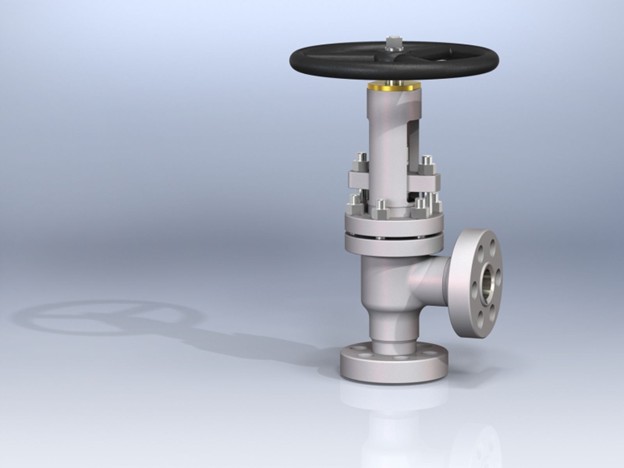

Angle valve |
DN45 – 260 / 2” – 10” |
|
Drop Check valve |
DN10 – 200 / ½” – 10” |
|
Block valve |
DN10 – 58 / ½” – 3” |
|
Butterfly Valves |
DN90– 250 / 4” – 12” |
|
Control Valves |
DN16– 300 / 1” – 12 |
